Home Battery Installation and Battery-Ready Switchboards

We install home batteries across northern Sydney, and we upgrade the switchboard first when it needs the space or the protection.

What a Home Battery Asks of Your Switchboard

Northern Sydney added 127 home batteries for every 1,000 houses between July 2025 and August 2026. Each one connects through the switchboard, and older boards often need work first. These are the usual reasons. We install batteries and upgrade boards under NSW licence 397311C.

See battery uptake by postcode in our research
  • No Spare Space

    The battery inverter needs its own breaker. Boards filled by years of extensions have no room left.

  • Ceramic Fuses

    Boards still on rewireable fuses are usually replaced with breakers before a battery connects.

  • Missing RCD Protection

    New circuits for the battery need safety switch protection under the wiring rules.

  • A Second Inverter

    Adding a battery beside existing solar often means two inverters feeding the same board.

  • Isolation and Labels

    A battery is a second source of supply, so the board gets isolators and warning signs.

  • Backup Circuits

    Keeping chosen circuits on in an outage usually means a separate backed-up section of the board.

  • Battery Location

    AS/NZS 5139 limits where a battery can go, which sets the cable run back to the board.

  • Network Approval

    Ausgrid or Endeavour Energy approves the connection before the battery is switched on.

Why Choose End Point Electrical
for Your Home Battery?

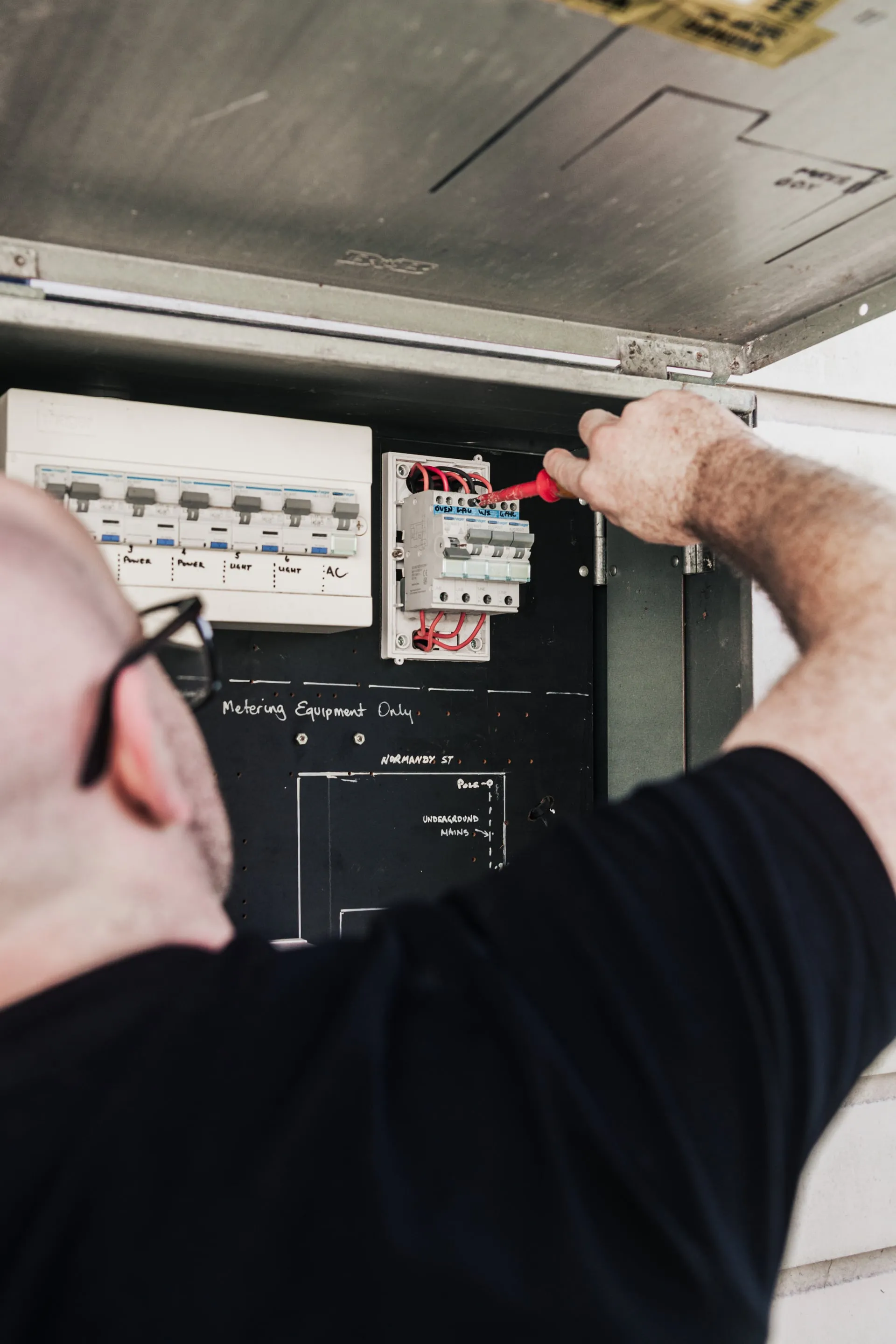

End Point Electrical electrician working inside an open switchboard
  • Board and Battery in One Job

    We do the switchboard upgrade and the battery install, so the board is sized and laid out for the battery from the start.

  • Licensed Contractor

    End Point Electrical holds NSW contractor licence 397311C. Every job ends with testing and a Certificate of Compliance for Electrical Work.

  • Local to Northern Sydney

    Based in Terrey Hills, we work across the Northern Beaches, the North Shore, Ryde and Epping, Hornsby and the Hills District.

Our Home Battery Installation Process

A battery job starts at the switchboard. Here is how we take it from first look to a working system.

Book a Battery and Switchboard Check
  1. STEP 1

    Check the Board and the Site

    We look over the switchboard and meter panel with your existing solar in mind, then agree where the battery can go.

  2. STEP 2

    Quote and Approvals

    You get one quote covering the battery and any board work it needs. The network connection application goes in before the install.

  3. STEP 3

    Install, Test and Hand Over

    We upgrade the board if it needs it, then install and commission the battery. Everything is tested before we show you the monitoring.

How the Battery Rebate Works

A short version from the official sources, checked 8 October 2026. Amounts depend on the battery's size and its install date, so we do not quote them here. Our battery research lists every rule with its source.

  1. 1

    The federal discount

    The Cheaper Home Batteries Program started on 1 July 2025. It runs through the Small-scale Renewable Energy Scheme, and the department describes the discount as around 30% of the upfront cost for batteries of 5 kWh to 100 kWh connected to new or existing solar.

    Sources: DCCEEW, NSW Climate and Energy Action. Checked 8 October 2026.

  2. 2

    How it reaches your quote

    An eligible battery creates small-scale technology certificates (STCs). You can assign them to a registered agent in return for an upfront discount. The battery must be on the Clean Energy Council approved list and installed by an SAA accredited installer with battery endorsement.

    Source: Clean Energy Regulator, Solar batteries. Checked 8 October 2026.

  3. 3

    It steps down over time

    Since 1 May 2026 the number of STCs per kWh drops every six months, and support is tiered by size: full rate up to 14 kWh, then less per kWh above that. The rate on your install date is the one that counts.

    Source: Clean Energy Regulator, STC factor table. Checked 8 October 2026.

  4. 4

    The NSW VPP incentive

    The NSW battery installation discount is closed for homes. The NSW incentive for connecting a battery to a virtual power plant is still open with no closing date, and it can be combined with the federal discount.

    Sources: Install a battery, VPP incentive. Checked 8 October 2026.

Home batteries in northern Sydney: uptake by postcodeOur analysis of Clean Energy Regulator data: 127 batteries per 1,000 houses in our area against 105 across Greater Sydney, plus what older switchboards need.

Typical job

What a typical home battery install looks like

Most home batteries in northern Sydney go in beside solar panels that are already on the roof. We open the switchboard first, because an older board often needs space or RCD protection before a battery and its inverter can connect. The network application goes in before connection day. The battery is mounted where the standard allows, wired back to the board and labelled as a second source of supply.

You end up with
A tested battery system with labelled isolation at the switchboard and a Certificate of Compliance for Electrical Work (CCEW)
  1. Check the switchboard and meter panel
  2. Quote the battery work and any board upgrade it needs
  3. Upgrade the board if needed, then mount and wire the battery
  4. Commission and test, then walk you through the monitoring

What Our Clients Say About End Point Electrical

5.0 from 14 Google reviews
  • Rated 5 out of 5

    “Andrew and Jake have been amazing and professional to work with. They've fixed power points and replaced light fittings at my place. I've since recommended them to both my parents and grandparents where a fuse box upgrade has been completed for my fathers place and an oven install along with lighting and ceiling fans for my grandmother. Both have had nothing but positive things to say. Would highly recommend!”

    Reece Tailby

    Google review

  • Rated 5 out of 5

    “Had fans, power points and tv speakers installed. Guys did an amazing job, quick, clean and very polite. Highly recommended”

    Nathanael Merchant

    Google review

  • Rated 5 out of 5

    “Andy and his team of electricians are true professionals. All electrical jobs are well considered and undertaken with care to provide the best possible outcome. Whether the job is large or small, Andy will continue to investigate the issue to achieve the desired result and he provides exceptional service which is rare to find these days. I have no hesitation in recommending End Point Electrical for all your electrical needs.”

    Melanie Bloom

    Google review

  • Rated 5 out of 5

    “Couldn’t recommend them higher! I was doing renovations on my house and I got the boys from end point electrical to come in. From the get go it was so easy they looked at my property gave me a quote and the price was very reasonable. They got it done with no issues and their customer service was amazing! They updated me when I needed to be. The quality of the work was amazing! They were great blokes to deal with. If you’re looking for the best couldn’t recommend them any higher! Would also have a beer with them!”

    Tristan Black

    Google review

  • Rated 5 out of 5

    “Excellent communication and quality of work. Very professional, would highly recommend.”

    Dexywilson

    Google review

  • Rated 5 out of 5

    “I recently completed a major renovation on my home where we essentially rebuilt it stage by stage, eventually tripling the size of the house. Endpoint Electrical wired the entire project and were fantastic to work with from start to finish. Our build was a little unconventional compared to a standard new build, as we were living in the house the whole time. This meant the electrical work had to constantly adapt — thinking about both the present and the future, with some areas not even built yet while others were scheduled to be removed later on. Despite the challenges, the team handled everything professionally and thoughtfully. They are exceptional at what they do, very easy to communicate with, can think out of the box and all round a top blokes. I use them when ever I can and recommend to all.”

    Benjamin Williams

    Google review

  • Rated 5 out of 5

    “Did an amazing job and cleaned up after they finished. Pricing was great, and will definitely use them again.”

    Ryan Hutton

    Google review

  • Rated 5 out of 5

    “Andrew & Jake were exceptional when it came to the electrical package for my project! There assistance within pre construction and helping achieve the electrical budget was outstanding, and there recommendations for light fittings and value management options is what made the build come to life for me and my family! Very glad my builder recommended/uses them - and I strongly suggest you give these fella a call!”

    Ben Rasmussen

    Google review

  • Rated 5 out of 5

    “Andrew and Jake and all the boys are always super helpful clean up after themselves Respectful to clients turn up when they say they will. You will have a great result at a fair price”

    Mat Chakley BRACE

    Google review

  • Rated 5 out of 5

    “We have used Andy and Jake from End Point Electrical for many years for electrical works at our house and always found them fantastic. Would highly recommend them!”

    Andy Crow

    Google review

  • Rated 5 out of 5

    “I can highly recommend End Point Electrical. They have provided exemplary service to me, undertaking electrical and network wiring work at both my previous townhouse and my current apartment. They are so good that I have signed them up as the preferred supplier to our building, of which I am the strata committee chair.”

    Graham Lewis

    Google review

  • Rated 5 out of 5

    “I recently used End Point Electrical for a renovation. Their team was terrific. Professional, on time on budget, and solution orientated. Highly recommend them.”

    Harald Svensen

    Google review

  • Rated 5 out of 5

    “Highly recommend End Point Electrical - Jake, Andrew and the staff are all fantastic to work with and do a great job. We have had the team install a new electrical box, kitchen renovations, ceiling fans and much more. Each job has been done professionally and seamlessly. Thanks!!”

    Naomi Cohen

    Google review

  • Rated 5 out of 5

    “Andy, Jake and their team were fantastic. Great communication, showed up when they said they would and with all materials there. They adapted smoothly to my atypical problems and their attention to detail was outstanding. Their work is so neat and tidy I asked them to back to tidy up a previous electrician's messy cabling. I've recommended End Point to multiple friends already and will keep coming back.”

    Adam Farrow-Palmer

    Google review

Frequently Asked Questions About
Home Battery Installation

Do I need solar panels to get the federal battery discount?

Yes. The Clean Energy Regulator says the battery must be installed with a new or existing solar PV system to be eligible. Most homes adding a battery in northern Sydney already have panels on the roof, and the battery is connected alongside them. CER eligibility rules, checked 8 October 2026.

Will my switchboard need an upgrade before a battery goes in?

It depends on the board. If it has spare space, circuit breakers and RCD protection, the battery can often connect to it as it is. Boards with ceramic fuses, no room left or no safety switches usually need work first. We check the board before we quote, and you can read more on our switchboard upgrades page.

Can a battery be added to the solar system I already have?

Usually, yes. One option keeps your solar inverter and adds a battery with its own inverter (AC coupling). The other replaces the solar inverter with a hybrid inverter that runs both (DC coupling). Under the federal program the inverter the battery connects to must be able to join a virtual power plant, so the age and model of your inverter shape the choice.

How does the federal battery discount work?

The Cheaper Home Batteries Program runs through the Small-scale Renewable Energy Scheme. An eligible battery creates small-scale technology certificates, and you can assign them to a registered agent in return for an upfront discount. The department says you do not need to apply to it or the CER yourself. See the DCCEEW program page, checked 8 October 2026.

Will a home battery keep my power on in a blackout?

Only if the system is set up for backup. Some batteries and inverters can supply chosen circuits during an outage, which usually means moving those circuits to a backed-up section of the board. Others switch off with the grid. Tell us early if backup matters to you, because it changes the switchboard work.

Who applies to Ausgrid or Endeavour Energy?

The installer submits the connection application to your network before the battery is connected. Most of northern Sydney is on Ausgrid and much of the Hills District is on Endeavour Energy. See Ausgrid and Endeavour Energy for their processes.

Get Your Home Ready for a Battery

Tell us about your switchboard and your solar, and we will check what the battery needs before we quote.
